Functions
VECTOR	vectorNew (const size_t dimension)
	create a new column vector More...

void	vectorDelete (VECTOR *v)
	free memory allocated by vectorNew More...

bool	vectorGetDimension (VECTOR v, size_t *dimension)
	get dimension of vector More...

bool	vectorEquals (VECTOR v, VECTOR w)
	compare two vectors More...

bool	vectorSetElement (VECTOR v, const size_t row, MATRIX_VALUE value)
	set one element in vector More...

bool	vectorGetElement (VECTOR v, const size_t row, MATRIX_VALUE *value)
	get one element in vector More...

bool	vectorSet (VECTOR v, const MATRIX_VALUE values[], const size_t valuesCount)
	set all values of vector More...

bool	vectorGet (VECTOR v, MATRIX_VALUE values[], size_t *valuesCount)
	get all values of vector More...

VECTOR	vectorAddition (VECTOR v, VECTOR w)
	add two vectors More...

VECTOR	vectorSubstraction (VECTOR v, VECTOR w)
	subtract a vector More...

VECTOR	vectorMultiplicationScalar (VECTOR v, MATRIX_VALUE scalar)
	multiply a vector with scalar More...

bool	vectorDotProduct (VECTOR v, VECTOR w, MATRIX_VALUE *product)
	dot product of two vectors More...

VECTOR	vectorCrossProduct (VECTOR v, VECTOR w)
	cross product of two vectors More...

bool	vectorScalarTripleProduct (VECTOR v, VECTOR w, VECTOR x, MATRIX_VALUE *product)
	scalar triple product of three vectors More...

MATRIX	vectorOuterProduct (VECTOR v, VECTOR w)
	outer product of two vectors More...

bool	vectorLength (VECTOR v, MATRIX_VALUE *length)
	calculate length of vector More...

VECTOR	vectorClone (VECTOR v)
	clone a vector More...

Variables
static const size_t	index_a [VECTOR_STANDARD_DIMENSION] = {1, 2, 0}

static const size_t	index_b [VECTOR_STANDARD_DIMENSION] = {2, 0, 1}

Detailed Description

Function Documentation

VECTOR vectorNew ( const size_t dimension )

create a new column vector

Function allocates memory for a new vector of given dimension. All elements are set to 0.

See also: vectorDelete

Parameters

[in] dimension rows of vector to create

Returns: new vector
NULL on memory allocation error

Examples:: testMatrix.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void vectorDelete ( VECTOR * v )

free memory allocated by vectorNew

Function frees memory of vector created by vectorNew. The vector pointer v will be set to NULL.

Parameters

[in,out] v pointer to vector do delete

Examples:: testMatrix.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

bool vectorGetDimension	(	VECTOR	v,
		size_t *	dimension
	)

get dimension of vector

Function sets dimension of vector in parameter dimension.

Parameters

[out] dimension address of variable dimension to insert count of rows of vector

Returns: true on success
false on parameter error (v is NULL)

Examples:: testMatrix.cpp.

Here is the call graph for this function:

bool vectorEquals	(	VECTOR	v,
		VECTOR	w
	)

compare two vectors

Function compares dimensions and values of two vectors.

Parameters

[in]	v	vector 1 to compare
[in]	w	vector 2 to compare

Returns: true if vectors are equal
false vectors are different or parameter error

Examples:: testMatrix.cpp.

Here is the call graph for this function:

bool vectorSetElement	(	VECTOR	v,
		const size_t	row,
		MATRIX_VALUE	value
	)

set one element in vector

Function sets the value of one element in vector. Rows are count from 0..(dimension of vector - 1).

Parameters

[in]	v	vector to set value in
[in]	row	row of element
[in]	value	value to set to element

Returns: true on success
false on parameter error

Examples:: testMatrix.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

bool vectorGetElement	(	VECTOR	v,
		const size_t	row,
		MATRIX_VALUE *	value
	)

get one element in vector

Function gets the value of one element in vector. Rows are count from 0..(dimension of vector - 1).

Parameters

[in]	v	vector to get value from
[in]	row	row of element
[out]	value	pointer to value to set value to element in

Returns: true on success
false on parameter error

Examples:: testMatrix.cpp.

Here is the call graph for this function:

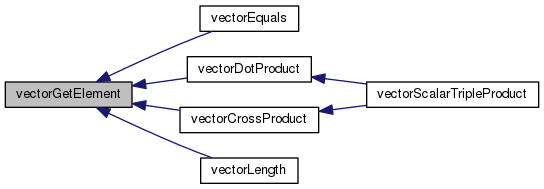

Here is the caller graph for this function:

bool vectorSet	(	VECTOR	v,
		const MATRIX_VALUE	values[],
		const size_t	valuesCount
	)

set all values of vector

Function sets all values of vectors.

Note: valuesCount must be equal to rows of rows.

Parameters

[in]	v	vector to set values in
[in]	values	values to set to element
[in]	valuesCount	count of values in array

Returns: true on success
false on parameter error

Examples:: testMatrix.cpp.

Here is the call graph for this function:

bool vectorGet	(	VECTOR	v,
		MATRIX_VALUE	values[],
		size_t *	valuesCount
	)

get all values of vector

Function gets all values of vectors.

Note: valuesCount must be greater or equal to rows of rows.

Parameters

[in]	v	vector to get values from
[out]	values	pointer to values to set values in
[in,out]	valuesCount	count of values in array contains afterwards count of copied values

Returns: true on success
false on parameter error

Examples:: testMatrix.cpp.

Here is the call graph for this function:

VECTOR vectorAddition	(	VECTOR	v,
		VECTOR	w
	)

add two vectors

Function adds two vectors.

Note: The vectors must be from the same dimension \(\vec y = \vec v + \vec w\).

Parameters

[in]	v	vector 1 to add
[in]	w	vector 2 to add

Returns: new vector with added values
NULL on parameter or memory allocation error

Examples:: testMatrix.cpp.

Here is the call graph for this function:

VECTOR vectorSubstraction	(	VECTOR	v,
		VECTOR	w
	)

subtract a vector

Function subtract a vector from another vector \(\vec y = \vec v - \vec w\).

Note: The vectors must be from the same dimension.

Parameters

[in]	v	vector to subtract from
[in]	w	vector to subtract

Returns: new vector with subtracted values
NULL on parameter or memory allocation error

Examples:: testMatrix.cpp.

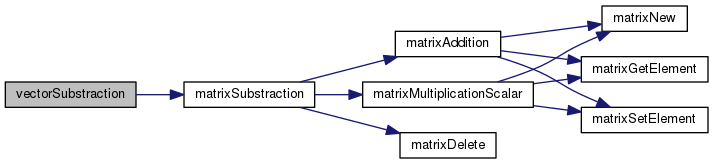

Here is the call graph for this function:

VECTOR vectorMultiplicationScalar	(	VECTOR	v,
		MATRIX_VALUE	scalar
	)

multiply a vector with scalar

Function multiplies a vector with scalar value \(\vec y = \vec v * scalar\).

Parameters

[in]	v	vector to multiply
[in]	scalar	value to multiply vector with

Returns: new vector with multiplied values
NULL on parameter or memory allocation error

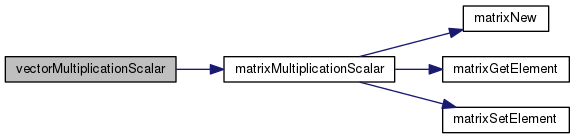

Here is the call graph for this function:

bool vectorDotProduct	(	VECTOR	v,
		VECTOR	w,
		MATRIX_VALUE *	product
	)

dot product of two vectors

Function multiplies two vectors to get dot product as scalar \(product = \vec v \cdot \vec w\).

Note: The vectors must be from the same dimension.

Parameters

[in]	v	vector to multiply
[in]	w	vector to multiply
[out]	product	result value of dot multiplication

Returns: true on success
false on parameter error

Examples:: testMatrix.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

VECTOR vectorCrossProduct	(	VECTOR	v,
		VECTOR	w
	)

cross product of two vectors

Function multiplies two vectors to get cross product vector \(\vec y = \vec v \times \vec w \).

Note: Both vectors must be from the dimension VECTOR_STANDARD_DIMENSION.

Parameters

[in]	v	vector to multiply
[in]	w	vector to multiply

Returns: new vector with multiplied values
NULL on parameter or memory allocation error

Examples:: testMatrix.cpp.

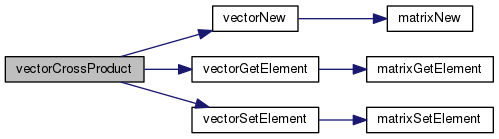

Here is the call graph for this function:

Here is the caller graph for this function:

bool vectorScalarTripleProduct	(	VECTOR	v,
		VECTOR	w,
		VECTOR	x,
		MATRIX_VALUE *	product
	)

scalar triple product of three vectors

Function multiplies three vectors to get the scalar triple product \(product = (\vec v \times \vec w) \cdot \vec x \).

Note: Both vectors must be from the dimension VECTOR_STANDARD_DIMENSION.; The vectors must be from the same dimension.

Parameters

[in]	v	vector to multiply
[in]	w	vector to multiply
[in]	x	vector to multiply
[out]	product	result value of multiplication

Returns: true on success
false on parameter error

Examples:: testMatrix.cpp.

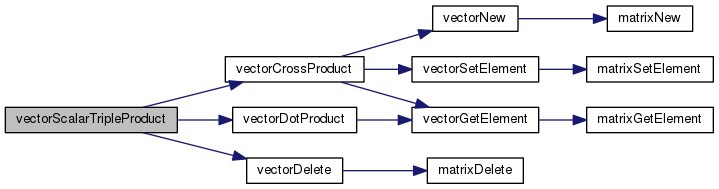

Here is the call graph for this function:

MATRIX vectorOuterProduct	(	VECTOR	v,
		VECTOR	w
	)

outer product of two vectors

Function multiplies two vectors to get outer product matrix \(A = \vec v \otimes \vec w \).

Parameters

[in]	v	vector to multiply
[in]	w	vector to multiply

Returns: new matrix with multiplied values
NULL on parameter or memory allocation error

Examples:: testMatrix.cpp.

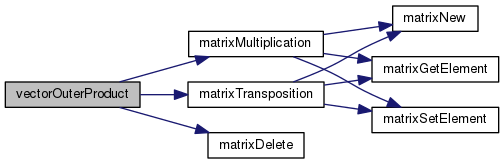

Here is the call graph for this function:

bool vectorLength	(	VECTOR	v,
		MATRIX_VALUE *	length
	)

calculate length of vector

Function calculates length of vector by \(\sqrt{a_{0}^{2} + a_{1}^{2} + ... + a_{(rows-1)}^{2}}\)

Parameters

[in]	v	vector to multiply
[in]	w	vector to multiply

Returns: new matrix with multiplied values
NULL on parameter or memory allocation error

Examples:: testMatrix.cpp.

Here is the call graph for this function:

VECTOR vectorClone ( VECTOR v )

clone a vector

Function clones a vector.

Note: The vectors must be from the same dimension.

Function creates a new vector with the same dimension and values like given vector.

Parameters

[in] v vector to clone

Returns: new vector like v
NULL on parameter or memory allocation error

Here is the call graph for this function:

Variable Documentation

const size_t index_a[VECTOR_STANDARD_DIMENSION] = {1, 2, 0}

static

const size_t index_b[VECTOR_STANDARD_DIMENSION] = {2, 0, 1}

static
